Configure a Third Party Email Provider

Modified on Tue, 21 Apr at 12:42 PM

TABLE OF CONTENTS

SendGrid
Office 365
Gmail
Troubleshooting

This list is not exhaustive of third party providers nor is it showing recommendations or support providers by Synergetic. Please consider a provider based on your own needs and commercial requirements.

SendGrid

Click on Settings and then select API Keys

Now click on Create API Key

In the Creation screen, give it an appropriate name (i.e. Synergetic)

Under Permissions, select Restricted and then scroll down to Mail Send, expand Mail Send and and swipe the sub Mail Send permission to Full Access.

Now click on Create & View, take note of the API Key as this becomes the SMTP password and should be treated/protected as one.

Synergetic Configuration

Open up Synergetic and login as a System Administrator, go to Systems > E-Mail/SMS/Fax Configuration Maintenance

Begin to configure Synergetic with the following details

Key Name	Key Value
Mail Server Name	smtp.sendgrid.net
Mail Server Port	587
TLS/SSL Support	Required
Authentication	Login
Proxy Username	apikey
Proxy Password	<key generated in Sendgrid>

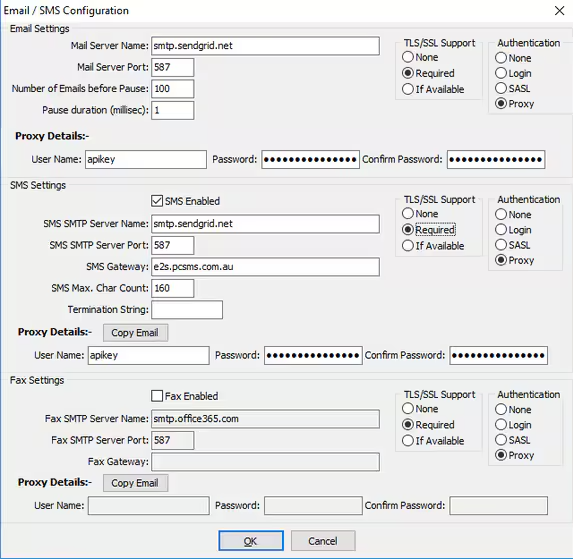

Your settings window should look similar to the one below.

If you need to adjust your e-mail settings for SynWeb and Community Portal you'll need to do this under System > Configuration Maintenance as they are all configured separately.

SynWeb

Search for SynWeb|Email then locate and modify the following keys;

Key1	Key2	Key3	Key4	Value
SynWeb	Email	Password		<key generated in Sendgrid>
SynWeb	Email	PortNumber		587
SynWeb	Email	Server	TLS	1
SynWeb	Email	ServerName		smtp.sendgrid.net
SynWeb	Email	UserName		apikey

Community Portal

Search for Portal|SMTP then locate and modify the following keys;

Key1	Key2	Key3	Key4	Value
CommunityPortal	SMTP	ServerName		smtp.sendgrid.net
CommunityPortal	SMTP	ServerPassword		<key generated in Sendgrid>
CommunityPortal	SMTP	ServerPort	TLS	587
CommunityPortal	SMTP	ServerTLSMode		1
CommunityPortal	SMTP	ServerUserName		apikey

Script

You can also use the below script to bulk change your e-mail settings to the new provider. Change the variables to suit your environment and then run it against your Synergetic database.

declare @servername varchar(8000)

declare @port int

declare @tls int

declare @auth int

declare @username varchar(8000)

declare @password varchar(8000)

-- Update email server settings below

set @servername='smtp.sendgrid.net'

set @port=587

set @tls=1 -- 0=Disabled 1=Enabled

set @auth=3 -- 0=Disabled 1=Login 2=SASL 3=Proxy

set @username='apikey'

set @password='' -- MUST be encrypted not plain text

-- System email settings

update config set config.Value=@servername where config.Key1='System' and config.key2='Email' and config.key3='Server' and config.key4='Name'

update config set config.Value=@port where config.Key1='System' and config.key2='Email' and config.key3='Server' and config.key4='Port'

update config set config.Value=@tls where config.Key1='System' and config.key2='Email' and config.key3='Server' and config.key4='TLS'

update config set config.Value=@auth where config.Key1='System' and config.key2='Email' and config.key3='Server' and config.key4='Auth'

update config set config.Value=@username where config.Key1='System' and config.key2='Email' and config.key3='Proxy' and config.key4='Username'

update config set config.Value=@password where config.Key1='System' and config.key2='Email' and config.key3='Proxy' and config.key4='Password'

-- SMS email settings

update config set config.Value=@servername where config.Key1='System' and config.key2='SMS' and config.key3='Server' and config.key4='Name'

update config set config.Value=@port where config.Key1='System' and config.key2='SMS' and config.key3='Server' and config.key4='Port'

update config set config.Value=@tls where config.Key1='System' and config.key2='SMS' and config.key3='Server' and config.key4='TLS'

update config set config.Value=@auth where config.Key1='System' and config.key2='SMS' and config.key3='Server' and config.key4='Auth'

update config set config.Value=@username where config.Key1='System' and config.key2='SMS' and config.key3='Proxy' and config.key4='Username'

update config set config.Value=@password where config.Key1='System' and config.key2='SMS' and config.key3='Proxy' and config.key4='Password'

-- FAX email settings

update config set config.Value=@servername where config.Key1='System' and config.key2='Fax' and config.key3='Server' and config.key4='Name'

update config set config.Value=@port where config.Key1='System' and config.key2='Fax' and config.key3='Server' and config.key4='Port'

update config set config.Value=@tls where config.Key1='System' and config.key2='Fax' and config.key3='Server' and config.key4='TLS'

update config set config.Value=@auth where config.Key1='System' and config.key2='Fax' and config.key3='Server' and config.key4='Auth'

update config set config.Value=@username where config.Key1='System' and config.key2='Fax' and config.key3='Proxy' and config.key4='Username'

update config set config.Value=@password where config.Key1='System' and config.key2='Fax' and config.key3='Proxy' and config.key4='Password'

-- SynWeb email settings

update config set config.Value=@servername where config.Key1='SynWeb' and config.key2='Email' and config.key3='ServerName'

update config set config.Value=@port where config.Key1='SynWeb' and config.key2='Email' and config.key3='PortNumber'

update config set config.Value=@tls where config.Key1='SynWeb' and config.key2='Email' and config.key3='Server' and config.key4='TLS'

update config set config.Value=@auth where config.Key1='SynWeb' and config.key2='Email' and config.key3='Auth'

update config set config.Value=@username where config.Key1='SynWeb' and config.key2='Email' and config.key3='UserName'

update config set config.Value=@password where config.Key1='SynWeb' and config.key2='Email' and config.key3='Password'

-- Community Portal email settings

update config set config.Value=@servername where config.Key1='CommunityPortal' and config.key2='SMTP' and config.key3='ServerName'

update config set config.Value=@port where config.Key1='CommunityPortal' and config.key2='SMTP' and config.key3='ServerPort'

update config set config.Value=@tls where config.Key1='CommunityPortal' and config.key2='SMTP' and config.key3='ServerTLSMode'

update config set config.Value=@auth where config.Key1='CommunityPortal' and config.key2='SMTP' and config.key3='ServerAuth'

update config set config.Value=@username where config.Key1='CommunityPortal' and config.key2='SMTP' and config.key3='ServerUserName'

update config set config.Value=@password where config.Key1='CommunityPortal' and config.key2='SMTP' and config.

Office 365

Office 365 requires encryption and authentication for all email and requires creating a 'proxy' user to send email on behalf of all users.

Login into your Office 365 administration console and create a new user (to use as a proxy)
Update send-as permissions for the user to send email from all users

Synergetic Configuration

Open up Synergetic and login as a System Administrator, go to Systems > E-Mail/SMS/Fax Configuration Maintenance

Begin to configure Synergetic with the following details

Key Name	Key Value
Mail Server Name	smtp.office365.com
Mail Server Port	587
TLS/SSL Support	Required
Authentication	Login
Proxy Username	<username for new proxy user>
Proxy Password	<password for new proxy user>

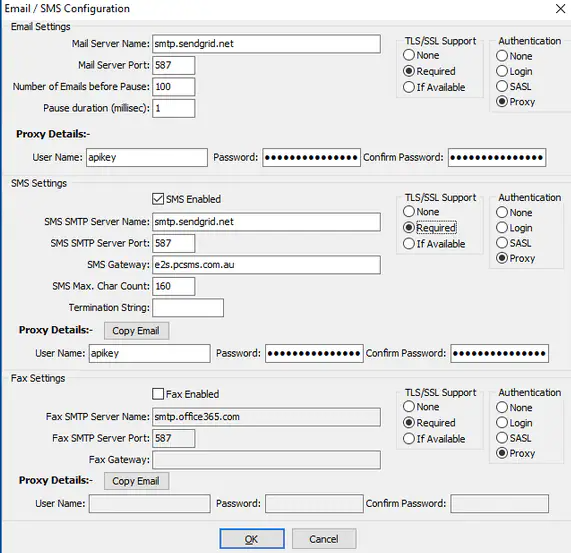

Your settings window should look similar to the one below.

If you need to adjust your e-mail settings for SynWeb and Community Portal you'll need to do this under System > Configuration Maintenance as they are all configured separately.

Under 'System > Configuration Maintenance', with key1='System' and key2='Email' and key3='Proxy' and key4='Password', copy the encrypted password text. This will be required for the sections following.

SynWeb

Search for SynWeb|Email then locate and modify the following keys;

Key1	Key2	Key3	Key4	Value
SynWeb	Email	Password		<encrypted password for new proxy user>
SynWeb	Email	PortNumber		587
SynWeb	Email	Server	TLS	1
SynWeb	Email	ServerName		smtp.office365.com
SynWeb	Email	UserName		<username for new proxy user>

Community Portal

Search for Portal|SMTP then locate and modify the following keys;

Key1	Key2	Key3	Key4	Value
CommunityPortal	SMTP	ServerName		smtp.office365.com
CommunityPortal	SMTP	ServerPassword		<encrypted password for new proxy user>
CommunityPortal	SMTP	ServerPort	TLS	587
CommunityPortal	SMTP	ServerTLSMode		1
CommunityPortal	SMTP	ServerUserName		<username for new proxy user>

Script

You can also use the below script to bulk change your e-mail settings to the new provider. Change the variables to suit your environment and then run it against your Synergetic database.

declare @servername varchar(8000)

declare @port int

declare @tls int

declare @auth int

declare @username varchar(8000)

declare @password varchar(8000)

-- Update email server settings below

set @servername='smtp.office365.com'

set @port=587

set @tls=1 -- 0=Disabled 1=Enabled

set @auth=3 -- 0=Disabled 1=Login 2=SASL 3=Proxy

set @username='<username for new proxy user>'

set @password='<encrypted password for new proxy user>' -- MUST be encrypted not plain text - contact Synergetic support to encrypt password or copy text from existing encrypted password (entered via Systems > E-Mail/SMS/Fax Configuration Maintenance)

-- System email settings

update config set config.Value=@servername where config.Key1='System' and config.key2='Email' and config.key3='Server' and config.key4='Name'

update config set config.Value=@port where config.Key1='System' and config.key2='Email' and config.key3='Server' and config.key4='Port'

update config set config.Value=@tls where config.Key1='System' and config.key2='Email' and config.key3='Server' and config.key4='TLS'

update config set config.Value=@auth where config.Key1='System' and config.key2='Email' and config.key3='Server' and config.key4='Auth'

update config set config.Value=@username where config.Key1='System' and config.key2='Email' and config.key3='Proxy' and config.key4='Username'

update config set config.Value=@password where config.Key1='System' and config.key2='Email' and config.key3='Proxy' and config.key4='Password'

-- SMS email settings

update config set config.Value=@servername where config.Key1='System' and config.key2='SMS' and config.key3='Server' and config.key4='Name'

update config set config.Value=@port where config.Key1='System' and config.key2='SMS' and config.key3='Server' and config.key4='Port'

update config set config.Value=@tls where config.Key1='System' and config.key2='SMS' and config.key3='Server' and config.key4='TLS'

update config set config.Value=@auth where config.Key1='System' and config.key2='SMS' and config.key3='Server' and config.key4='Auth'

update config set config.Value=@username where config.Key1='System' and config.key2='SMS' and config.key3='Proxy' and config.key4='Username'

update config set config.Value=@password where config.Key1='System' and config.key2='SMS' and config.key3='Proxy' and config.key4='Password'

-- FAX email settings

update config set config.Value=@servername where config.Key1='System' and config.key2='Fax' and config.key3='Server' and config.key4='Name'

update config set config.Value=@port where config.Key1='System' and config.key2='Fax' and config.key3='Server' and config.key4='Port'

update config set config.Value=@tls where config.Key1='System' and config.key2='Fax' and config.key3='Server' and config.key4='TLS'

update config set config.Value=@auth where config.Key1='System' and config.key2='Fax' and config.key3='Server' and config.key4='Auth'

update config set config.Value=@username where config.Key1='System' and config.key2='Fax' and config.key3='Proxy' and config.key4='Username'

update config set config.Value=@password where config.Key1='System' and config.key2='Fax' and config.key3='Proxy' and config.key4='Password'

-- SynWeb email settings

update config set config.Value=@servername where config.Key1='SynWeb' and config.key2='Email' and config.key3='ServerName'

update config set config.Value=@port where config.Key1='SynWeb' and config.key2='Email' and config.key3='PortNumber'

update config set config.Value=@tls where config.Key1='SynWeb' and config.key2='Email' and config.key3='Server' and config.key4='TLS'

update config set config.Value=@auth where config.Key1='SynWeb' and config.key2='Email' and config.key3='Auth'

update config set config.Value=@username where config.Key1='SynWeb' and config.key2='Email' and config.key3='UserName'

update config set config.Value=@password where config.Key1='SynWeb' and config.key2='Email' and config.key3='Password'

-- Community Portal email settings

update config set config.Value=@servername where config.Key1='CommunityPortal' and config.key2='SMTP' and config.key3='ServerName'

update config set config.Value=@port where config.Key1='CommunityPortal' and config.key2='SMTP' and config.key3='ServerPort'

update config set config.Value=@tls where config.Key1='CommunityPortal' and config.key2='SMTP' and config.key3='ServerTLSMode'

update config set config.Value=@auth where config.Key1='CommunityPortal' and config.key2='SMTP' and config.key3='ServerAuth'

update config set config.Value=@username where config.Key1='CommunityPortal' and config.key2='SMTP' and config.key3='ServerUserName'

update config set config.Value=@password where config.Key1='CommunityPortal' and config.key2='SMTP' and config.key3='ServerPassword'

Gmail

Gmail requires encryption and authentication for all email and requires creating a 'proxy' user to send email on behalf of all users.

Login into your Gmail administration console and create a new user (to use as a proxy)
Update send-as permissions for the user to send email from all users

Synergetic Configuration

Open up Synergetic and login as a System Administrator, go to Systems > E-Mail/SMS/Fax Configuration Maintenance

Begin to configure Synergetic with the following details

Key Name	Key Value
Mail Server Name	smtp.gmail.com
Mail Server Port	587
TLS/SSL Support	Required
Authentication	Login
Proxy Username	<username for new proxy user>
Proxy Password	<password for new proxy user>

Your settings window should look similar to the one below.

If you need to adjust your e-mail settings for SynWeb and Community Portal you'll need to do this under System > Configuration Maintenance as they are all configured separately.

SynWeb

Search for SynWeb|Email then locate and modify the following keys;

Key1	Key2	Key3	Key4	Value
SynWeb	Email	Password		<encrypted password for new proxy user>
SynWeb	Email	PortNumber		587
SynWeb	Email	Server	TLS	1
SynWeb	Email	ServerName		smtp.gmail.com
SynWeb	Email	UserName		<username for new proxy user>

Community Portal

Search for Portal|SMTP then locate and modify the following keys;

Key1	Key2	Key3	Key4	Value
CommunityPortal	SMTP	ServerName		smtp.gmail.com
CommunityPortal	SMTP	ServerPassword		<encrypted password for new proxy user>
CommunityPortal	SMTP	ServerPort	TLS	587
CommunityPortal	SMTP	ServerTLSMode		1
CommunityPortal	SMTP	ServerUserName		<username for new proxy user>

Script

You can also use the below script to bulk change your e-mail settings to the new provider. Change the variables to suit your environment and then run it against your Synergetic database.

declare @servername varchar(8000)

declare @port int

declare @tls int

declare @auth int

declare @username varchar(8000)

declare @password varchar(8000)

-- Update email server settings below

set @servername='smtp.gmail.com'

set @port=587

set @tls=1 -- 0=Disabled 1=Enabled

set @auth=3 -- 0=Disabled 1=Login 2=SASL 3=Proxy

set @username='<username for new proxy user>'

-- System email settings

update config set config.Value=@servername where config.Key1='System' and config.key2='Email' and config.key3='Server' and config.key4='Name'

update config set config.Value=@port where config.Key1='System' and config.key2='Email' and config.key3='Server' and config.key4='Port'

update config set config.Value=@tls where config.Key1='System' and config.key2='Email' and config.key3='Server' and config.key4='TLS'

update config set config.Value=@auth where config.Key1='System' and config.key2='Email' and config.key3='Server' and config.key4='Auth'

update config set config.Value=@username where config.Key1='System' and config.key2='Email' and config.key3='Proxy' and config.key4='Username'

update config set config.Value=@password where config.Key1='System' and config.key2='Email' and config.key3='Proxy' and config.key4='Password'

-- SMS email settings

update config set config.Value=@servername where config.Key1='System' and config.key2='SMS' and config.key3='Server' and config.key4='Name'

update config set config.Value=@port where config.Key1='System' and config.key2='SMS' and config.key3='Server' and config.key4='Port'

update config set config.Value=@tls where config.Key1='System' and config.key2='SMS' and config.key3='Server' and config.key4='TLS'

update config set config.Value=@auth where config.Key1='System' and config.key2='SMS' and config.key3='Server' and config.key4='Auth'

update config set config.Value=@username where config.Key1='System' and config.key2='SMS' and config.key3='Proxy' and config.key4='Username'

update config set config.Value=@password where config.Key1='System' and config.key2='SMS' and config.key3='Proxy' and config.key4='Password'

-- FAX email settings

update config set config.Value=@servername where config.Key1='System' and config.key2='Fax' and config.key3='Server' and config.key4='Name'

update config set config.Value=@port where config.Key1='System' and config.key2='Fax' and config.key3='Server' and config.key4='Port'

update config set config.Value=@tls where config.Key1='System' and config.key2='Fax' and config.key3='Server' and config.key4='TLS'

update config set config.Value=@auth where config.Key1='System' and config.key2='Fax' and config.key3='Server' and config.key4='Auth'

update config set config.Value=@username where config.Key1='System' and config.key2='Fax' and config.key3='Proxy' and config.key4='Username'

update config set config.Value=@password where config.Key1='System' and config.key2='Fax' and config.key3='Proxy' and config.key4='Password'

-- SynWeb email settings

update config set config.Value=@servername where config.Key1='SynWeb' and config.key2='Email' and config.key3='ServerName'

update config set config.Value=@port where config.Key1='SynWeb' and config.key2='Email' and config.key3='PortNumber'

update config set config.Value=@tls where config.Key1='SynWeb' and config.key2='Email' and config.key3='Server' and config.key4='TLS'

update config set config.Value=@auth where config.Key1='SynWeb' and config.key2='Email' and config.key3='Auth'

update config set config.Value=@username where config.Key1='SynWeb' and config.key2='Email' and config.key3='UserName'

update config set config.Value=@password where config.Key1='SynWeb' and config.key2='Email' and config.key3='Password'

-- Community Portal email settings

update config set config.Value=@servername where config.Key1='CommunityPortal' and config.key2='SMTP' and config.key3='ServerName'

update config set config.Value=@port where config.Key1='CommunityPortal' and config.key2='SMTP' and config.key3='ServerPort'

update config set config.Value=@tls where config.Key1='CommunityPortal' and config.key2='SMTP' and config.key3='ServerTLSMode'

update config set config.Value=@auth where config.Key1='CommunityPortal' and config.key2='SMTP' and config.key3='ServerAuth'

update config set config.Value=@username where config.Key1='CommunityPortal' and config.key2='SMTP' and config.key3='ServerUserName'

update config set config.Value=@password where config.Key1='CommunityPortal' and config.key2='SMTP' and config.key3='ServerPassword'

Troubleshooting

It is recommended to install and configure the local SMTP service as a workaround for any email delivery issues such as timeouts or dropouts when delivering bulk-email. This also has the added benefit of faster initial delivery freeing up the application to continue. Further information on installing the SMTP service is available here: Email Service Configuration
